WE67K Delem DA58T 4+1 Axis CNC Metallugy Metal Progressing Bending Machine Hydraulic Press Brake

  • 1
  • 2
  • 3

Brand Name : AOXUANZG

Model Number : WE67K-160T3200MM

Certification : CE,ISO

Place of Origin : China

MOQ : 1

Price : $29800

Payment Terms : 50% deposit after order confirmed , 50% (payment after machine finished testing before shipping by(T/T).

Supply Ability : 500 sets/year

Delivery Time : 30 DAYS

Packaging Details : Plastic film package first, then placed in container with steel wire fixed.

Type : CNC Press Brake

Max. Bending Thickness : 6.2mm Carbon Steel, 3.1mm Stainless Steel

Throat depth : 300mm

Max. Bending Angle : 30-180

Model : WE67K

Pressure : Hydraulic

Max. Bending Length : 3200mm

Color : Customized

Contact Now

WE67K Delem DA58T 4+1 Axis CNC Metallugy Metal Progressing Bending Machine Hydraulic Press Brake

HYDRAULIC PRESS BRAKE
1. Adopt integrated hydraulic control system, more reliable and easy for maintenance. main hydraulic valves from Bosch (Germany)
2. All pipes, flange and joint with vibrations proof and leakage proof design and setting .
3. Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.
4. The hydraulic system is made in compliance with current regulations.

WE67K Delem DA58T 4+1 Axis CNC Metallugy Metal Progressing Bending Machine Hydraulic Press Brake


ELECTRICAL SYSTEM

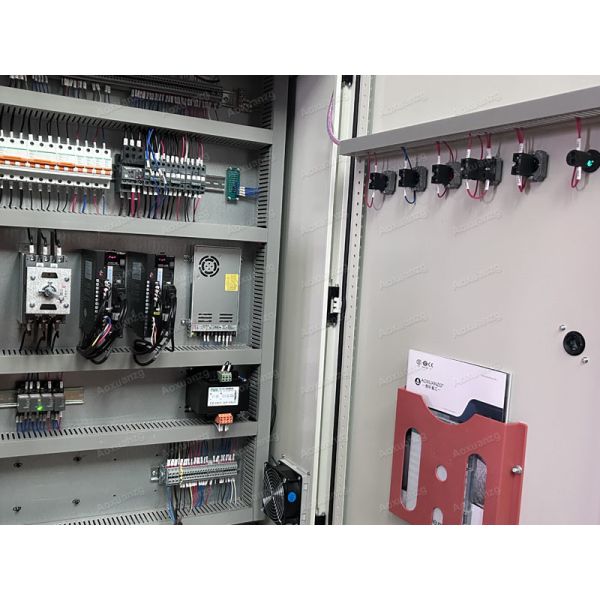

1. Electrical Cabinet under the international Standard, safe and reliable, strong anti interference capability.

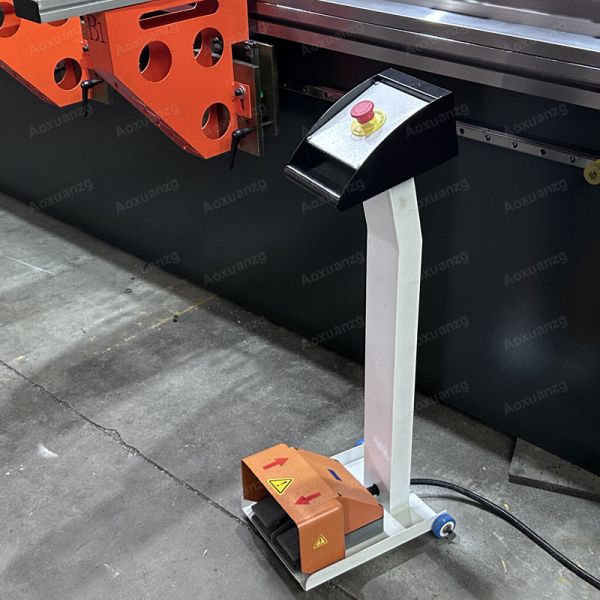

2. Protective fence to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.

SYNCHRO CONTROL SYSTEM
1. Patented system for exact parallelism and a high repeat accuracy
2. The worktable adopts the particular design,reducing the crowning distortion amount of lower tool effectively.
3. Adopt steel torsion bar synchro system,simple in structure and high in accuracy,ensures the parallelism between beams is used for the synchronism.
WE67K Delem DA58T 4+1 Axis CNC Metallugy Metal Progressing Bending Machine Hydraulic Press Brake
RAM AND DIES
1. The equipped difference standard Dies according machine’s model, special non-standard mold is available under client's
requirement according to real workpiece situation.
2. Upper and buttom die can be sectioned according to customer’s requirement.
3. The Machine By CNC Controller or NC Control With the point of programming, can calculate thebending angle bending depth.


Optional Controller
The control panel you choose can have a real impact on your productivity. To ensure you get the most out of your Press Brake, the best decisions are always guided by your industry, your product and even the things you hope to undertake in the future. We have DA52S, DA53T, DA58T, DA66T, DA69T, S630, S640, Cybtouch8, Cybtouch12 and other cnc controller.

WE67K Delem DA58T 4+1 Axis CNC Metallugy Metal Progressing Bending Machine Hydraulic Press Brake

Details:

Hydraulic CNC Press Brake

Brand Name: AOXUANZG
Model Number: WE67K-160T3200MM
Place of Origin: China
Certification: CE,ISO
Packaging Details: Plastic film package first, then placed in container with steel wire fixed.
Delivery Time: 30 DAYS
Type: CNC Press Brake

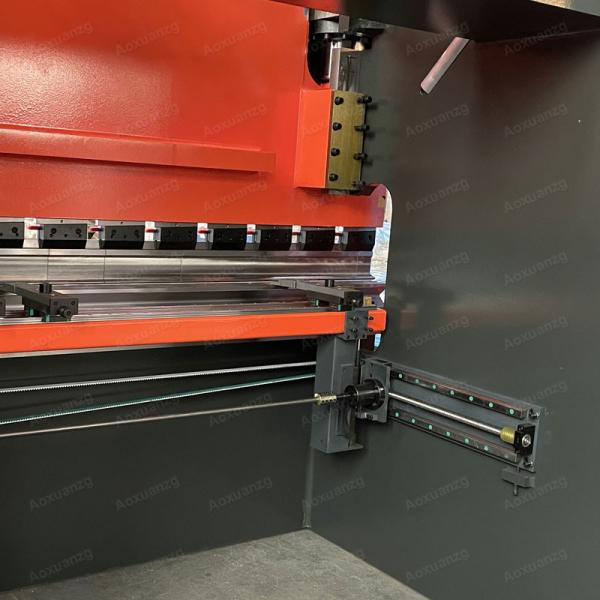

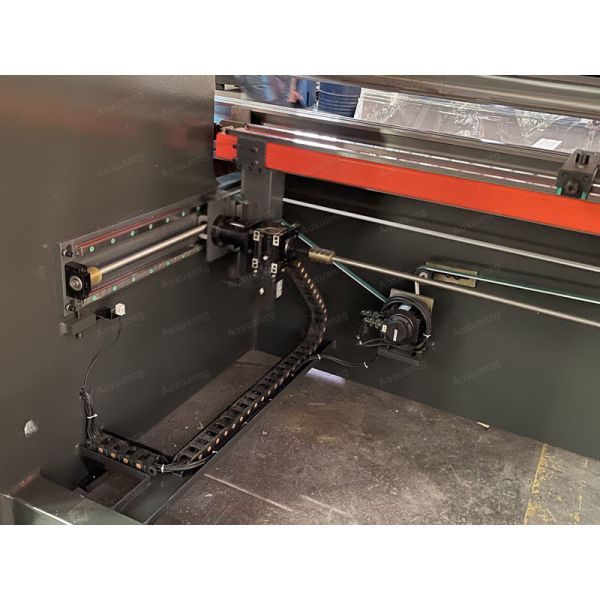

Adopting HIWIN ball screw and linear guide rail, accuracy 0.01mm

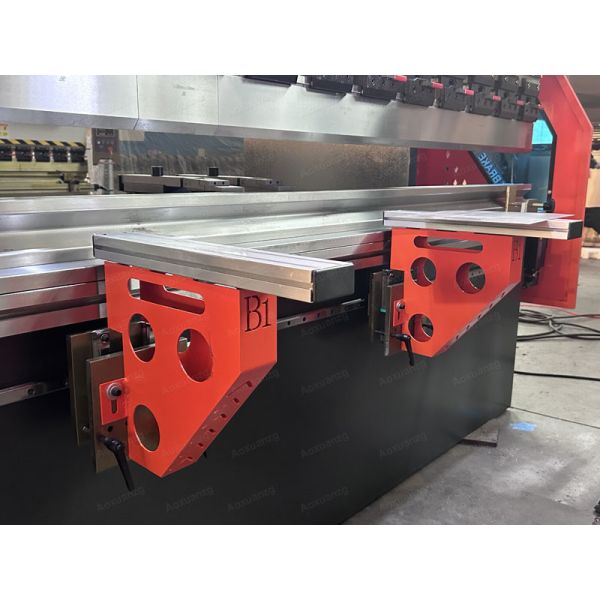

Front supporter bracket
Germany Bosch Rexroth hydraulic valve block
Germany EMB oil tube connector
Germany Siemens main motor
France Schneider electrics
Hydraulic & electrical overload protection

Automatic Mechanical compensation
Upper and lower dies(86°, R0.6mm, material: 42CrMo)

WE67K Delem DA58T 4+1 Axis CNC Metallugy Metal Progressing Bending Machine Hydraulic Press BrakeWE67K Delem DA58T 4+1 Axis CNC Metallugy Metal Progressing Bending Machine Hydraulic Press Brake

WE67K Delem DA58T 4+1 Axis CNC Metallugy Metal Progressing Bending Machine Hydraulic Press BrakeWE67K Delem DA58T 4+1 Axis CNC Metallugy Metal Progressing Bending Machine Hydraulic Press BrakeWE67K Delem DA58T 4+1 Axis CNC Metallugy Metal Progressing Bending Machine Hydraulic Press BrakeWE67K Delem DA58T 4+1 Axis CNC Metallugy Metal Progressing Bending Machine Hydraulic Press BrakeWE67K Delem DA58T 4+1 Axis CNC Metallugy Metal Progressing Bending Machine Hydraulic Press BrakeWE67K Delem DA58T 4+1 Axis CNC Metallugy Metal Progressing Bending Machine Hydraulic Press BrakeWE67K Delem DA58T 4+1 Axis CNC Metallugy Metal Progressing Bending Machine Hydraulic Press Brake

Technical parameter:

Model Pressure Worktable length Distance between columns Depth of throat Stroke Max height between worktable and ram Main motor Weight

Dimension

(LxWxH)

Units kn mm mm mm mm mm kw mm mm
WC67Y/K-40/2500 400 2500 1925 220 80 300 4 3000 2650x1100x1950
WC67Y/K-50/2500 500 2500 2015 220 100 340 4 3750 2650x1250x2100
WC67Y/K-63/2500 630 2500 2015 250 100 340 5.5 4300 2650x1300x2200
WC67Y/K-80/2500 800 2500 2010 250 120 380 5.5 5200 2560x1350x2250
WC67Y/K-80/3200 800 3200 2510 250 120 380 5.5 6000 3260x1350x2280
WC67Y/K-100/2500 1000 2500 2050 320 150 420 7.5 6700 2550x1360x2270
WC67Y/K-100/3200 1000 3200 2550 320 150 420 7.5 7200 3260x1365x2520
WC67Y/K-100/4000 1000 4000 3050 320 150 420 7.5 8500 4060x1365x2720
WC67Y/K-125/3200 1250 3200 2550 320 150 420 7.5 7800 3260x1465x2600
WC67Y/K-125/4000 1250 4000 3050 320 150 420 7.5 9000 4060x1460x2800
WC67Y/K-160/3200 1600 3200 2590 320 200 475 11 10500 3260x1580x2775
WC67Y/K-160/4000 1600 4000 3040 320 200 475 11 12500 4060x1580x2925
WC67Y/K-160/6000 1600 6000 4800 320 200 480 11 19500 6060x1580x3480
WC67Y/K-200/3200 2000 3200 2580 320 200 475 18.5 13200 3260x1650x2800
WC67Y/K-250/4000 2500 4000 3130 400 250 530 18.5 19000 4060x1840x3150
WC67Y/K-250/5000 2500 5000 3930 400 250 530 18.5 24000 5060x1840x3450
WC67Y/K-300/3200 3000 3200 2530 400 250 580 18.5 18000 3300x2100x2980
WC67Y/K-300/4000 3000 4000 3200 400 250 580 18.5 22000 4060x2040x3330
WC67Y/K-400/4000 4000 4000 3180 400 320 630 30 30000 4060x2220x3630
WC67Y/K-400/6000 4000 6000 4700 400 320 630 30 45000 60602x2203x980
WC67Y/K-500/6000 5000 6000 4600 500 320 70 30 55000 6080x2760x4000
WC67Y/K-800/6000 8000 6000 4600 500 400 900 37 72000 6100x3250x4300

Packing:
1. Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2. After tested, the machines will be wrapped with plastic sheet ,
3,a,Small size : carefully packed in wooden cases ;
b,Big size: machine will be securely wired into the container by steel wire.

Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.

In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.

After-sale.
* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.

If you are interested, please contact me ^-^
