Home > Torsion Bar Press Brake >

Hydraulic Torsion Bar Press Brake 125T Pressure 5mm Sheet Metal Hydraulic Bending Machine 3200mm

Anhui Aoxuan Heavy Industry Machine Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Hydraulic Torsion Bar Press Brake 125T Pressure 5mm Sheet Metal Hydraulic Bending Machine 3200mm

Brand Name : Aoxuanzg

Model Number : WC67Y-125T3200

Certification : CE

Place of Origin : Maanshan

MOQ : 1 SET

Price : $12000

Payment Terms : 50% deposit

Supply Ability : 300 sets/year

Delivery Time : 25 DAYS

Packaging Details : Wrap film around the machine, put in the Export wooden case.

Norminal pressure : 1250Kn

Material : High Strength Steel

Workable metal : Carbon steel, stainless steel, galvanized sheet

Carbon steel : ≤4.8mm

Stainless steel : ≤2.4mm

Open height : 380mm

Processing length : 3200mm/10ft

Stroke : 120mm

Main Motor Power : 7.5KW

Throat Depth : 320mm

Voltage : 380V/50HZ

Size : 3800*1850*2540mm

Poles distance : 2600mm

Net Weight : 6800KG

Contact Now

Product Description:

The overall European streamlined design, heat treatment frame, high-rigidity workbench, and optional mechanical compensation device can achieve precision bending.
Hydraulic synchronized control and Estun NC programmable logic controller ensure precise repeatability and ease of use.
The integrated hydraulic system (Bosch Rexroth, Germany) allows fast automatic switching into slow corners.

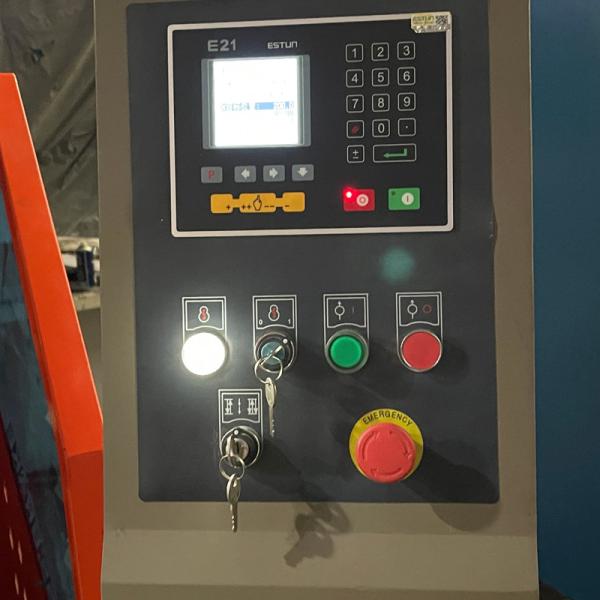

The X-axis and Y-axis are programmed and controlled through the NC E21 system, and the precise positioning function is achieved through the frequency converter.
Cutting-edge frequency response hydraulic control technology makes the machine tool more stable and operates more reliably.
The best parameter ratio, optimized kernel configuration, stable performance and more convenient operation.
The WC67K comes standard with a single-axis backgauge system and a single-axis bending angle system. You can choose to add a V-axis compensation function and choose a suitable mold to easily bend complex-shaped workpieces.

Features:

  1. Product Name: Torsion Bar Press Brake
  2. Model: WC67Y-125T3200
  3. Voltage: 380V/50HZ
  4. Main Motor Power: 7.5KW
  5. Throat Depth: 320mm
  6. Positioning Accuracy: ±0.03mm/m
  7. Y1 and Y2 axis for precise bending control
  8. Equipped with NC controller for easy operation
  9. Hydraulic system for powerful and smooth bending performance

Technical Parameters:

Technical Parameters Value
Net Weight 6800KG
Max. Opening Height 380mm
Overall Dimensions 3800*1850*2540mm
Material High Strength Steel
Throat Depth 320mm
Color Blue, grey and black
Control System E21
Max. Bending Length 3200mm
Stroke 140mm
Postioning Accuracy ±0.03mm/m
Mechanical System Mechanical Torsion Bar
Efficiency High Efficiency
Precision High Precision
Performance Stable Performance

Applications:

Torsion Bar Press Brake - Aoxuanzg

Brand Name: Aoxuanzg

Model Number: WC67Y-125T2

Place of Origin: Maanshan

Certification: CE

Minimum Order Quantity: 1 SET

Price: $8000

Packaging Details: Wrap film around the machine, put in a container.

Delivery Time: 25 DAYS

Payment Terms: 50% deposit

Supply Ability: 300 sets/year

Main Motor Power: 7.5KW

Stroke: 140mm

Max. Pressure: 1250KN

Positioning Accuracy: ±0.03mm/m

Throat Depth: 320mm

Details:

Hydraulic Torsion Bar Press Brake 125T Pressure 5mm Sheet Metal Hydraulic Bending Machine 3200mmHydraulic Torsion Bar Press Brake 125T Pressure 5mm Sheet Metal Hydraulic Bending Machine 3200mmHydraulic Torsion Bar Press Brake 125T Pressure 5mm Sheet Metal Hydraulic Bending Machine 3200mmHydraulic Torsion Bar Press Brake 125T Pressure 5mm Sheet Metal Hydraulic Bending Machine 3200mm

Customization:

Customized Service for Torsion Bar Press Brake

Our Torsion Bar Press Brake, model WC67Y-125T3200, is a high efficiency and precision mechanical press brake designed and manufactured by Aoxuanzg in Maanshan. We specialize in providing customized services to meet the specific needs and requirements of our customers.

With our Y1 and Y2 axis control system, our Torsion Bar Press Brake offers precise bending and high accuracy for a wide range of metal sheets. The mechanical torsion bar and advanced control system ensure smooth and stable operation, making it easy for operators to achieve desired results.

We understand that every customer has unique needs and we are committed to providing tailored solutions. Our team of experts will work closely with you to customize the machine based on your specific requirements, such as size, color, voltage, and opening height. We use high strength steel to ensure the durability and longevity of our press brake.

Our Torsion Bar Press Brake is CE certified and we offer a minimum order quantity of 1 set. The machine will be carefully packaged with wrap film and shipped in an export wooden case to ensure safe delivery. We have a supply ability of 300 sets per year and our delivery time is 25 days.

Choose Aoxuanzg for a reliable and efficient Torsion Bar Press Brake customized to meet your unique needs. Contact us now for more information and a competitive quote.

Packing and Shipping:

Packaging and Shipping for Torsion Bar Press Brake

The Torsion Bar Press Brake will be carefully packaged to ensure safe and secure delivery to our customers. The packaging process will involve the following steps:

  • First, the press brake will be wrapped in a layer of protective material to prevent any scratches or damage during transportation.
  • The wrapped press brake will then be placed in a sturdy cardboard box, which is designed to withstand any potential impact during shipping.
  • The box will be sealed and labeled with the necessary shipping information, including the customer's address, contact details, and any special handling instructions.
  • For international shipments, the necessary customs forms and documentation will be included with the package.

We take great care in ensuring that our products are packaged properly to minimize the risk of damage during shipping. However, in the rare event that any damage occurs during transit, we offer a warranty and will work with our customers to resolve the issue.

As for shipping, we offer a variety of options to cater to our customers' needs. We can arrange for door-to-door delivery, or customers can choose to pick up the press brake from our warehouse. We also work with trusted shipping carriers to ensure timely and efficient delivery of our products.

Thank you for choosing our Torsion Bar Press Brake. We are confident that our careful packaging and shipping process will ensure the safe and timely arrival of your product. If you have any questions or concerns, please do not hesitate to contact us.

FAQ:

1. Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis/Conformance: Insurance: Origin, and other export documents where required.

2. What is the average lead time?
For samples the lead time is about 7 days. For mass production the lead time is 20-30 days after receiving the deposit payment.
The lead times become effective when (1) we have received your deposit and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.

3. What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or Alipay:30% deposit in advance, 70% balance before shipment.

4. What is the product warranty?
The warranty period is 13 months after the bill of lading date. We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone's satisfaction.

5. Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.

6. How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the quickest but also most expensive way. By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.

7.Are you a manufacturer? Can we come and visit your factory?
Yes, we are manufacturer. You are welcome to visit the factory, and we will introduce the products you are interested in in detail on the spot.

Hydraulic Torsion Bar Press Brake 125T Pressure 5mm Sheet Metal Hydraulic Bending Machine 3200mm
