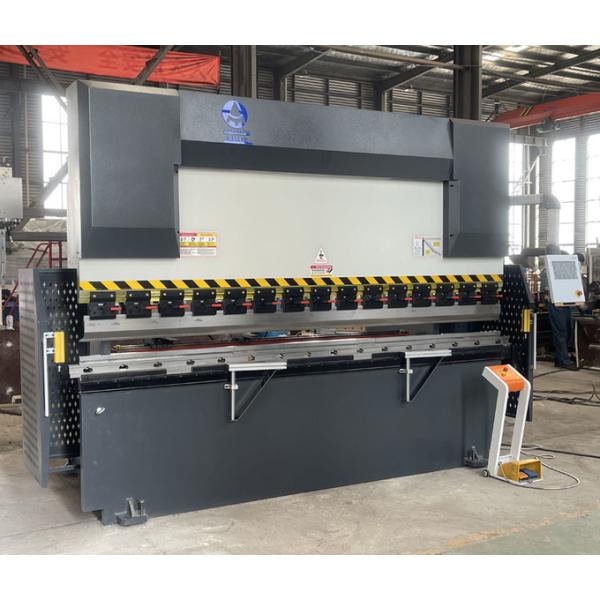

125T 3200MM Hydraulic Press Brake CNC Bending Machine 3 Axis XYV With TP10s
MAIN FEATURE:
1. Totally EU streamlined design. Monobloc by welding robots & apparatus and stress relief process by annealing treatment.
2. Hydraulic top-drive, steadiness and reliability, mechanical stop, steel torsion bar to maintain synchronization, high precision.
3. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch Rexroth, Germany.
4. Travel limit protection, full machine guarding with safety interlocker.
5. Mechanical synchronous mechanism and the complex compensation are designed so as to raise the workpieces precision.
6. The stroke and distance of the back gauge is adjusted by the motor.
7. Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays
8. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.
9. Standard punches and dies. Front arm material support. Foot pedal with emergency stop.
10. Control system: Estun NC E21, CNC DELEM DA41, DA52, DA66T.
Technical parameter:
| Model | Nominal force | Worktable length | Distance between columns | Throat depth | Slider stroke | Maximum opening height between worktable and slider | Main motor power | Machine tool size
(L x W x H) | Machine weight |
| Units | kn | mm | mm | mm | mm | mm | kw | mm | kg |
| 63/3200 | 630 | 3200 | 2700 | 250 | 100 | 400 | 5.5 | 4340×1460×2420 | 6000 |
| 100/3200 | 1000 | 3200 | 2700 | 320 | 150 | 450 | 7.5 | 3450×1450×2600 | 8000 |
| 160/3200 | 1600 | 3200 | 2700 | 320 | 200 | 465 | 11 | 3250×2535×2920 | 13000 |
| 250/3200 | 2500 | 3200 | 2700 | 400 | 250 | 560 | 15 | 4000×2250×4060 | 18400 |
| 250/4000 | 2500 | 4000 | 3300 | 400 | 250 | 560 | 15 | 4800×2250×4060 | 20000 |
| 250/5000 | 2500 | 5000 | 4100 | 400 | 250 | 560 | 15 | 5800×2250×4060 | 22000 |
| 250/7000 | 2500 | 7000 | 6250 | 400 | 250 | 560 | 15 | 7800×2250×4160 | 25000 |
| 320/4000 | 3200 | 4000 | 3300 | 400 | 250 | 560 | 22 | 4060×2570×4560 | 22000 |
| 320/5000 | 3200 | 5000 | 4300 | 400 | 250 | 560 | 22 | 5060×2570×4560 | 24510 |
| 320/6000 | 3200 | 6000 | 5300 | 400 | 250 | 560 | 22 | 6060×2570×4560 | 27020 |
| 400/4000 | 4000 | 4000 | 3100 | 400 | 320 | 625 | 37 | 4050×3240×3880 | 29950 |
| 400/5000 | 4000 | 5000 | 4210 | 400 | 320 | 625 | 37 | 5050×3240×3880 | 37000 |
| 400/6000 | 4000 | 6000 | 5100 | 400 | 320 | 625 | 37 | 6050×3240×3880 | 44050 |
| 500/4000 | 5000 | 4000 | 3100 | 400 | 320 | 630 | 37 | 4090×2965×5320 | 32700 |
| 500/5000 | 5000 | 5000 | 4100 | 400 | 320 | 630 | 37 | 5090×2965×5320 | 39750 |
| 500/6000 | 5000 | 6000 | 5100 | 400 | 320 | 630 | 37 | 6090×2965×5320 | 46800 |
| 630/5000 | 6300 | 5000 | 4100 | 400 | 320 | 710 | 45 | 5050×4910×3200 | 67950 |
| 630/6000 | 6300 | 6000 | 5100 | 400 | 320 | 710 | 45 | 6050×4910×3200 | 75000 |
| 800/5000 | 8000 | 8000 | 6700 | 350 | 400 | 750 | 55 | 9500×3000×6050 | 100000 |
Press brake:125T 3200 mm

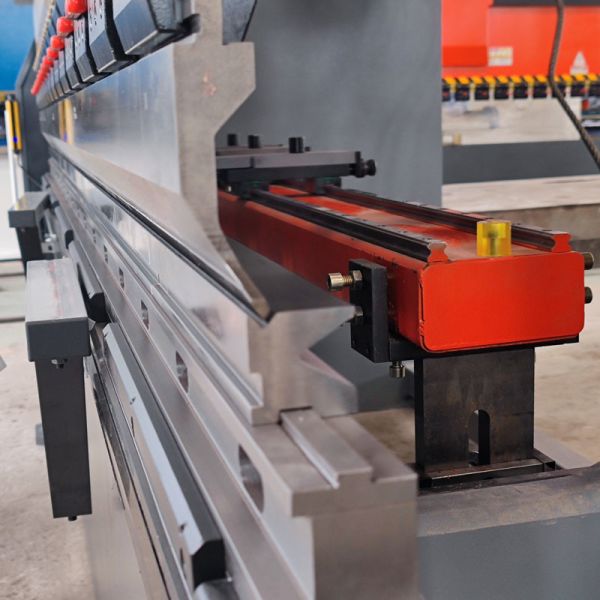

Standard die:3200mm Segmented Upper die with lower die.
E21 Controller : Estun,Nanjing
Ball screw & linear guide:HIWIN
Hydraulic valve:Rexroth,Germany
Tubing connector:EMB,Germany
Main Motor:German Siemens
Electrics:Schneider ,France
Hydraulic Pump:SUNNY,USA
Foot switch:Karcon,South Korea
CNC Stop finger with linear guide
Plate Support Arm
Hydraulic & Electrical overload protection
Protection facility :
-laser protection(Optional)
-Light screen protection(Optional)
Compensation device(Optional)
Fast clamp(Optional)
Light screen protection(Optional)
Rear guardrail(Optional)
Side guardrail(Optional)
Packing Detail:
☂ Each Press Brake with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
Delivery Detail :
☀ Shipped in 30 days after payment.
If you are interested, please contact me ^-^
