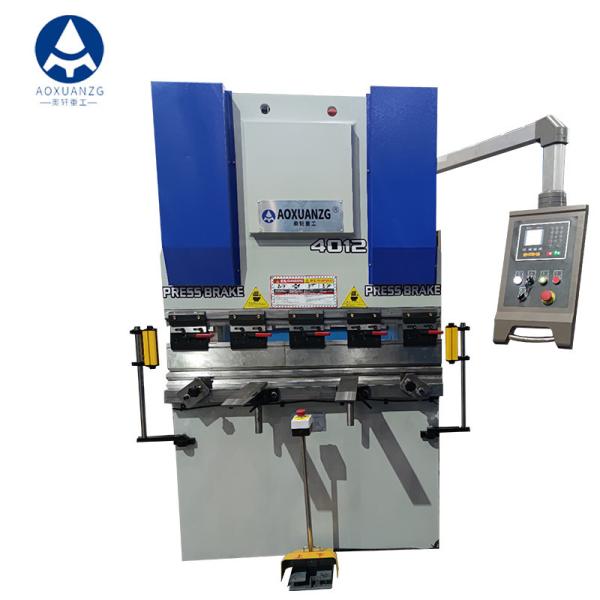

K-30t 1200 CNC Torsion Bar Press Brake WC67Y Hydraulic Sheet Metal Folder

Product Categories
Anhui Aoxuan Heavy Industry Machine Co., Ltd.
Contact Now

K-30t 1200 CNC Torsion Bar Press Brake WC67Y Hydraulic Sheet Metal Folder

  • 1
  • 2

Brand Name : AOXUANZG

Model Number : WC67Y-30T/1200

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : $5900-$6585/unit

Payment Terms : L/C, T/T, Western Union, D/P, D/A

Supply Ability : 500sets/Year

Delivery Time : 20-30 days

Packaging Details : Standard export packing

Material / Metal Processed : Carbon/Stainless steel/Iron/Aluminum

Control System : E21 controller

Machine Model : Hydraulic press brake

Nominal Pressure : 300KN

Distance Between Housings : 1080mm

Throat Depth : 200mm

RAM Stroke : 80mm

Max. Open Height : 380mm

Main Motor : 3kw

Weight : 1.4T

Strokes : ≥16times/min

Contact Now

WC67Y/K-30t/1200 Hydraulic Bending& Folding Machine/CNC Torsion Bar Press Brake

Press brake is a kind of machine specially in bending plate, mainly used in automotive manufacturing, kitchen appliance manufa
cturing, electricity poles, lamp posts,
ship-building, military industry, steel industry, mechanical manufacturing. Bending dies can be designed and changed according
to customers' different needs.

Main types of press brake produced by our company are: manual torsion, CNC torsion press brake, electro-hydraulic press brake,
large electro-hydraulic synchronization press brake Currently, our biggest press brake equipment is 1000T/10000, production for
many years, and stable performance.

K-30t 1200 CNC Torsion Bar Press Brake WC67Y Hydraulic Sheet Metal Folder


Technical Parameters:
K-30t 1200 CNC Torsion Bar Press Brake WC67Y Hydraulic Sheet Metal Folder​

Model Nominal pressure (KN) Worktable Length (mm) Columns Distance (mm) Throat Slider Max Main Dimension
Depth Stroke Open motor L x W x H
(mm) (mm) height Power (mm)
(mm) (KW)
WC67Y/K-30/1600 300 1600 1280 200 80 190 3 1700×900×1650
WC67Y/K-30/2000 300 2000 1280 200 80 190 3 1700×900×1650
WC67Y/K-40/2500 400 2500 1900 280 100 320 5.5 2600×1100×1900
WC67Y/K-63/2500 630 2500 1900 350 170 380 5.5 3100×1450×2050
WC67Y/K-80/3200 800 3200 2700 350 170 380 7.5 3500×1550×2100
WC67Y/K-100/3200 1000 3200 2700 400 200 420 7.5 3500×1580×2400
WC67Y/K-160/3200 1600 3200 2700 400 200 420 11 3500×1650×2550
WC67Y/K-200/3200 2000 3200 2700 400 200 420 15 3500×1680×2550
WC67Y/K-250/3200 2500 3200 2700 400 200 420 15 3500×1700×2600
WC67Y/K-320/3200 3200 3200 2700 400 200 420 22 3500×1800×2730
WC67Y/K-400/4000 4000 4000 3500 500 320 600 30 4300×2450×3500
WC67Y/K-500/5000 5000 5000 3900 500 320 600 37 5400×2810×4300
WC67Y/K-500/6000 5000 6000 4900 500 320 600 37 6500×2810×4300
WC67Y/K-500/7000 5000 7000 4900 500 320 600 37 7500×2810×4900
WC67Y/K-600/5000 6000 5000 3900 500 320 600 45 5500×2910×4900
WC67Y/K-600/6000 6000 6000 4900 500 320 600 45 6500×2910×5100
WC67Y/K-600/7000 6000 7000 5900 500 320 600 45 7500×2910×5200
WC67Y/K-800/6000 8000 6000 4900 600 400 600 55 6500×2750 ×5300
WC67Y/K-800/8000 8000 8000 6900 600 400 600 55 8500×2750×5900
WC67Y/K-1000/6000 10000 6000 4900 600 400 600 2×37 6500×2800×5600
WC67Y/K-1000/8000 10000 8000 6900 600 400 600 2×37 8500×2800×6100
WC67Y/K-1000/10000 10000 10000 8000 600 400 600 2×37 10500×2800×5850
WC67Y/K-1200/6000 12000 6000 4900 600 400 800 2×37 6500×3100×5850
WC67Y/K-1200/8000 12000 8000 6900 600 400 800 2×37 8500×3100×7150

Packing Detail:
Each Hydraulic Press Brake with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers
and ship them abroad.
Delivery Detail:
Shipped in 30 days after payment
K-30t 1200 CNC Torsion Bar Press Brake WC67Y Hydraulic Sheet Metal Folder​
