CNC Full Automatic Hydraulic Press Brake Bending Folding Machine With Automatic Bracket
MAIN FEATURE:
1. Totally EU streamlined design. Monobloc by welding robots & apparatus and stress relief process by annealing treatment.
2. Hydraulic top-drive, steadiness and reliability, mechanical stop, steel torsion bar to maintain synchronization, high precision.
3. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch Rexroth, Germany.
4. Travel limit protection, full machine guarding with safety interlocker.
5. Mechanical synchronous mechanism and the complex compensation are designed so as to raise the workpieces precision.
6. The stroke and distance of the back gauge is adjusted by the motor.
7. Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays
8. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.
9. Standard punches and dies. Front arm material support. Foot pedal with emergency stop.
10. Control system: Estun NC E21, CNC DELEM DA41, DA52, DA66T,Laimore EL15T.
Technical Parameters:
| Model | Norminal pressure (KN) | Worktable Length (mm) | Columns Distance (mm) | Throat Depth (mm) | Slider Stroke(mm) | Max Open hight (mm) | Main motor power(KW) | Crowing Cylinders | Control Axes | X axis stroke(mm) | X axis speed(mm/s) | Dimension
LxWxH (mm) |
| WC67Y/K-63/2500 | 630 | 2500 | 1900 | 350 | 170 | 380 | 5.5 | 2 | 3+1 | 500 | 200 | 3100×1450×2050 |
| WC67Y/K-80/3200 | 800 | 3200 | 2700 | 350 | 170 | 380 | 7.5 | 3 | 3+1 | 500 | 200 | 3500×1550×2100 |
| WC67Y/K-100/3200 | 1000 | 3200 | 2700 | 400 | 200 | 420 | 7.5 | 3 | 3+1 | 500 | 200 | 3500×1580×2400 |
| WC67Y/K-160/3200 | 1600 | 3200 | 2700 | 400 | 200 | 420 | 11 | 3 | 3+1 | 500 | 200 | 3500×1650×2550 |
| WC67Y/K-200/3200 | 2000 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3 | 3+1 | 500 | 200 | 3500×1680×2550 |
| WC67Y/K-250/3200 | 2500 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3 | 3+1 | 500 | 200 | 3500×1700×2600 |
| WC67Y/K-320/3200 | 3200 | 3200 | 2700 | 400 | 200 | 420 | 22 | 3 | 3+1 | 500 | 200 | 3500×1800×2730 |
| WC67Y/K-400/4000 | 4000 | 4000 | 3500 | 500 | 320 | 600 | 30 | 4 | 3+1 | 500 | 200 | 4300×2450×3500 |
| WC67Y/K-500/5000 | 5000 | 5000 | 3900 | 500 | 320 | 600 | 37 | / | 3+1 | 800 | 200 | 5400×2810×4300 |
| WC67Y/K-500/6000 | 5000 | 6000 | 4900 | 500 | 320 | 600 | 37 | / | 3+1 | 800 | 200 | 6500×2810×4300 |
| WC67Y/K-500/7000 | 5000 | 7000 | 4900 | 500 | 320 | 600 | 37 | / | 3+1 | 800 | 200 | 7500×2810×4900 |
| WC67Y/K-600/5000 | 6000 | 5000 | 3900 | 500 | 320 | 600 | 45 | / | 3+1 | 800 | 200 | 5500×2910×4900 |
| WC67Y/K-600/6000 | 6000 | 6000 | 4900 | 500 | 320 | 600 | 45 | / | 3+1 | 800 | 200 | 6500×2910×5100 |
| WC67Y/K-600/7000 | 6000 | 7000 | 5900 | 500 | 320 | 600 | 45 | / | 3+1 | 800 | 200 | 7500×2910×5200 |
| WC67Y/K-800/6000 | 8000 | 6000 | 4900 | 600 | 400 | 600 | 55 | / | 3+1 | 800 | 200 | 6500×2750 ×5300 |
| WC67Y/K-800/8000 | 8000 | 8000 | 6900 | 600 | 400 | 600 | 55 | / | 3+1 | 800 | 200 | 8500×2750×5900 |
| WC67Y/K-1000/6000 | 10000 | 6000 | 4900 | 600 | 400 | 600 | 2×37 | / | 3+1 | 800 | 200 | 6500×2800×5600 |
| WC67Y/K-1000/8000 | 10000 | 8000 | 6900 | 600 | 400 | 600 | 2×37 | / | 3+1 | 800 | 200 | 8500×2800×6100 |
| WC67Y/K-1000/10000 | 10000 | 10000 | 8000 | 600 | 400 | 600 | 2×37 | / | 3+1 | 800 | 200 | 10500×2800×5850 |
| WC67Y/K-1200/6000 | 12000 | 6000 | 4900 | 600 | 400 | 800 | 2×37 | / | 3+1 | 1000 | 200 | 6500×3100×5850 |
| WC67Y/K-1200/8000 | 12000 | 8000 | 6900 | 600 | 400 | 800 | 2×37 | / | 3+1 | 1000 | 200 | 8500×3100×7150
|
Details:
Main Configuration
Laimore EL15T CNC Controller
Adopting HIWIN ball screw and linear guide rail, accuracy 0.01mm
Front supporter bracket
Germany Bosch Rexroth hydraulic valve block
Germany EMB oil tube connector
Germany Siemens main motor
France Schneider electrics
Hydraulic & electrical overload protection
Automatic Mechanical compensation
Upper and lower dies(86°, R0.6mm, material: 42CrMo)
Safety Equipment:
Safety Standards(2006/42/EC)
1. EN 12622:2009+a1:2003
2. EN ISO 12100:20110
3. EN 60204-1:2006+A1:2009
Kacon pedal switch
South Korea KACON pedal switch, improving the service life and operational sensitivity
Main servo motor
Power saving

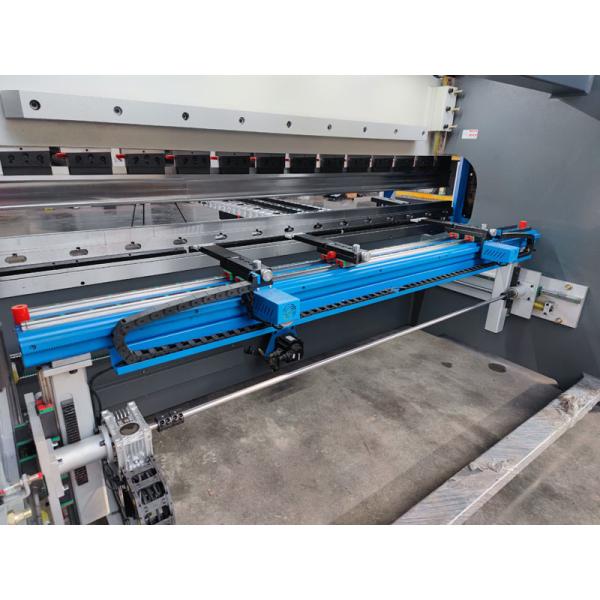

Automatic Bracket
Fully automatic, more high-end, save time and labor!
Ball Screw & Guide LinearBall
Adopt the HIWIN brand from Taiwan Ball Screw and guide linear , promise the high precision and speed when workingAdopt the HIWIN brand from Taiwan Ball Screw and guide linear , promise the high precision and speed when working
For more information, please contact me (^o^)/~
