Front Light Hydraulic Press Brakes 63T / 2500MM Blue White

Product Categories
Anhui Aoxuan Heavy Industry Machine Co., Ltd.
Contact Now

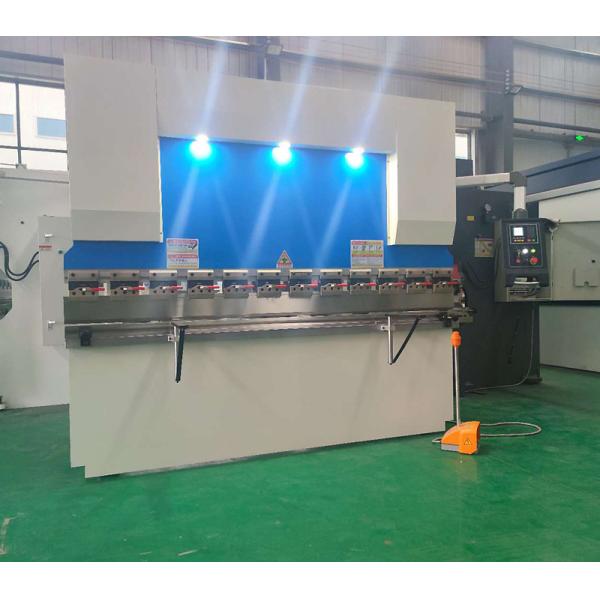

Front Light Hydraulic Press Brakes 63T / 2500MM Blue White

  • 1
  • 2
  • 3

Brand Name : AOXUANZG

Model Number : WC67K-63T/2500

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : $8185-$9485/unit

Payment Terms : L/C, T/T, Western Union, D/P, D/A

Supply Ability : 500sets/Year

Delivery Time : 20-30 days

Packaging Details : Standard export packing

Raw Material : Sheet / Plate

Material / Metal Processed : Carbon/Stainless steel/Iron/Aluminum

Controller : Nanjing Estun E21

Machine Type : NC Hydrualic press brake

Nominal Pressure : 630KN

Worktable Length : 2500mm

Machine Distance Between Housings : 2050mm

Throat Depth : 250mm

RAM Stroke : 140mm

Machine Max.Open Height : 395mm

Number of Strokes : ≥10 times/min

Machine Main Motor : 7.5kw

Size : 2605*1725*2355mm

Contact Now

63T/2500MM Blue White Press-Brakes Hydraulic Bending Press with Front Light Send To El Salvador
E21 Controller Press Brake
1. The X-axis and Y-axis are programmed by the NC E21 system to achieve accurate positioning of the inverter.
2. WC67K series press brake equipped with standard single-axis backgauge system (X-axis) and single-axis bending angle system (Y-axis), you can choose to add V-axis compensation function, and select the appropriate mold to easily bend the workpiece with complex shapes.
3. Rear Stopper and upper gliding block are both fitted with coders, for a more accurate display for positions of rear stopper and upper gliding block in coopeartion with digital display system, thus to further increase the operating precision of this machine.


Front Light Hydraulic Press Brakes 63T / 2500MM Blue WhiteFront Light Hydraulic Press Brakes 63T / 2500MM Blue White

The standard cofiguration:

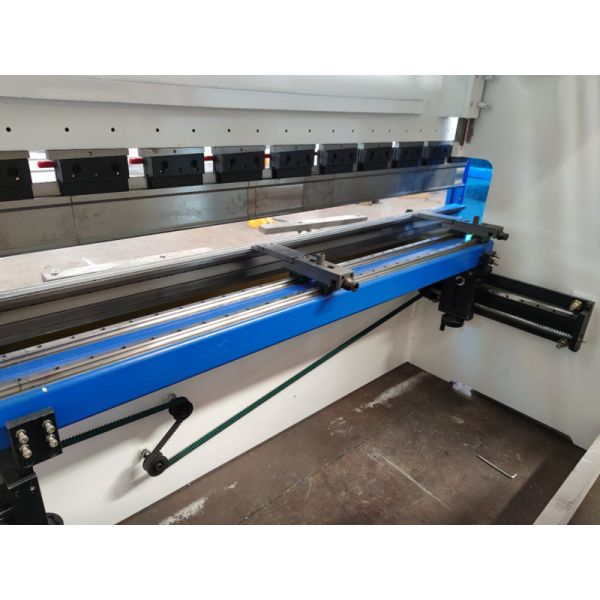

High precision backguage
Germany Bosch Rexroth safety valve
Germany EMB Hose connector
Schneider Electric Syste
RV reducer motor working table compensation (Optional)
Compensation device on workbench (Optional
Quick mold clamping device


Front Light Hydraulic Press Brakes 63T / 2500MM Blue White


Details:

Front Light Hydraulic Press Brakes 63T / 2500MM Blue White

Front Light Hydraulic Press Brakes 63T / 2500MM Blue WhiteFront Light Hydraulic Press Brakes 63T / 2500MM Blue White


Technical Parameters:
Front Light Hydraulic Press Brakes 63T / 2500MM Blue White​

Model

Nominal pressure

(KN)

Worktable Length

(mm)

Columns Distance

(mm)

 Throat Slider Max Main Dimension
Depth Stroke Open motor L x W x H
(mm) (mm) height Power (mm)
(mm) (KW)
WC67Y/K-30/1600 300 1600 1280 200 80 190 3 1700×900×1650
WC67Y/K-30/2000 300 2000 1280 200 80 190 3 1700×900×1650
WC67Y/K-40/2500 400 2500 1900 280 100 320 5.5 2600×1100×1900
WC67Y/K-63/2500 630 2500 1900 350 170 380 5.5 3100×1450×2050
WC67Y/K-80/3200 800 3200 2700 350 170 380 7.5 3500×1550×2100
WC67Y/K-100/3200 1000 3200 2700 400 200 420 7.5 3500×1580×2400
WC67Y/K-160/3200 1600 3200 2700 400 200 420 11 3500×1650×2550
WC67Y/K-200/3200 2000 3200 2700 400 200 420 15 3500×1680×2550
WC67Y/K-250/3200 2500 3200 2700 400 200 420 15 3500×1700×2600
WC67Y/K-320/3200 3200 3200 2700 400 200 420 22 3500×1800×2730
WC67Y/K-400/4000 4000 4000 3500 500 320 600 30 4300×2450×3500
WC67Y/K-500/5000 5000 5000 3900 500 320 600 37 5400×2810×4300
WC67Y/K-500/6000 5000 6000 4900 500 320 600 37 6500×2810×4300
WC67Y/K-500/7000 5000 7000 4900 500 320 600 37 7500×2810×4900
WC67Y/K-600/5000 6000 5000 3900 500 320 600 45 5500×2910×4900
WC67Y/K-600/6000 6000 6000 4900 500 320 600 45 6500×2910×5100
WC67Y/K-600/7000 6000 7000 5900 500 320 600 45 7500×2910×5200
WC67Y/K-800/6000 8000 6000 4900 600 400 600 55 6500×2750 ×5300
WC67Y/K-800/8000 8000 8000 6900 600 400 600 55 8500×2750×5900
WC67Y/K-1000/6000 10000 6000 4900 600 400 600 2×37 6500×2800×5600
WC67Y/K-1000/8000 10000 8000 6900 600 400 600 2×37 8500×2800×6100
WC67Y/K-1000/10000 10000 10000 8000 600 400 600 2×37 10500×2800×5850
WC67Y/K-1200/6000 12000 6000 4900 600 400 800 2×37 6500×3100×5850
WC67Y/K-1200/8000 12000 8000 6900 600 400 800 2×37 8500×3100×7150

Certifications:


Front Light Hydraulic Press Brakes 63T / 2500MM Blue White​ Front Light Hydraulic Press Brakes 63T / 2500MM Blue White

Packing and shipping:
For standard export packaging, the whole body of the machine is wrapped with plastic film, and then packed in wooden cases.There two kinds of ways: LCL is for small press brake, FCL is for big press brake.
※ LCL: Covered by plastic films, packed by wooden case.
※ FCL: Covered by plastic films, packed by a container.
☀ Beforepackaged, the machines will be tested strictly to guarantee the stability and high accuracy.
☂ After tested, the machines will be wrapped with plastic sheet ,machine will be securely wired to the container.
☂ Each Press Brake with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
Delivery Detail :
✈ Shipped in 30 days after payment.


Front Light Hydraulic Press Brakes 63T / 2500MM Blue White​ Front Light Hydraulic Press Brakes 63T / 2500MM Blue White

Customer & EXPO:
Front Light Hydraulic Press Brakes 63T / 2500MM Blue White​ Front Light Hydraulic Press Brakes 63T / 2500MM Blue White

FAQ

1. Are you the manufacture? Can we visit your factory?
◆ Of course, you can. We are manufacturer and we are located in Anhui,China. We have our own team for products design. Welcome to visit our factory and check our machine qualtiy, any question will be solved on time.

2. What's your main product? What is your main foreign market?
◆ Our main products are press brake, shears machines, press, cutting machine, locking machine , auto duct line and related products.Our main foreign markets are Asia, North America, Europe, and Africa.

3. What are the advantages of your machines? And how can I believe the quality of your product?
◆ The main configuration is import high quality products, and professional product quality inspection team ensures machine in top-quality, precision and life. For example, Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system and so on. Once tested as qualified, our machine would be sent out. So The quality of our product is stable and reliable.

4. Are you able to update the production process Information in time after placing our order?
◆ After confirming your order ,we would keep you updated of production details of emails and photos.

5. Can we be your agent?
◆ Yes,we are looking for global agent, and we will help agent improve the market ,and supply all the service like machine
technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.

6. Payment terms?
◆ T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect.

7. Are you provide product metal parts and provide us technical guidance?
◆ Wearing parts, Disassembly tool(free) are what we could provide.And we can give you technical guidance.Our technical staff can go abroad to provide you with professional technical guidance.

8. How long is your warranty?
◆ 2 years free warranty, life-long maintenance.

9. Do you accept customer Logo and customized ?
◆ We accept kinds of customized , including logo and machine .

For more information, please contact me (^o^)/~
