TP10S Servo Control Backgauge Hydraulic Press Bending Machine 30T1600MM

Product Categories
Anhui Aoxuan Heavy Industry Machine Co., Ltd.
Contact Now

TP10S Servo Control Backgauge Hydraulic Press Bending Machine 30T1600MM

  • 1
  • 2
  • 3

Brand Name : Aoxuanzg

Model Number : WC67Y-125T/4000

Certification : CE,ISO

Place of Origin : China

MOQ : 1 set

Price : $9000-$12000/unit

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 500 sets per year

Delivery Time : 20-30 working days

Packaging Details : Standard export packing

Nominal pressure (kn) : 300KN

Name : Bending Machine

Control system : TP10S

Throat depth : 250mm

Voltage : 380V or 220V/60HZ /3P (Also According To Your local voltage)

Main motor : 5.5kw to 30kw

Contact Now

TP10S Servo Control Backgauge 30T1600MM Hydraulic Bending Machine Press Brakes

Technical Parameters:
TP10S Servo Control Backgauge Hydraulic Press Bending Machine 30T1600MM​

Model

Nominal pressure

(KN)

Worktable Length

(mm)

Columns Distance

(mm)

 Throat Slider Max Main Dimension
Depth Stroke Open motor L x W x H
(mm) (mm) height Power (mm)
(mm) (KW)
WC67Y/K-30/1600 300 1600 1280 200 80 190 3 1700×900×1650
WC67Y/K-30/2000 300 2000 1280 200 80 190 3 1700×900×1650
WC67Y/K-40/2500 400 2500 1900 280 100 320 5.5 2600×1100×1900
WC67Y/K-63/2500 630 2500 1900 350 170 380 5.5 3100×1450×2050
WC67Y/K-80/3200 800 3200 2700 350 170 380 7.5 3500×1550×2100
WC67Y/K-100/3200 1000 3200 2700 400 200 420 7.5 3500×1580×2400
WC67Y/K-160/3200 1600 3200 2700 400 200 420 11 3500×1650×2550
WC67Y/K-200/3200 2000 3200 2700 400 200 420 15 3500×1680×2550
WC67Y/K-250/3200 2500 3200 2700 400 200 420 15 3500×1700×2600
WC67Y/K-320/3200 3200 3200 2700 400 200 420 22 3500×1800×2730
WC67Y/K-400/4000 4000 4000 3500 500 320 600 30 4300×2450×3500
WC67Y/K-500/5000 5000 5000 3900 500 320 600 37 5400×2810×4300
WC67Y/K-500/6000 5000 6000 4900 500 320 600 37 6500×2810×4300
WC67Y/K-500/7000 5000 7000 4900 500 320 600 37 7500×2810×4900
WC67Y/K-600/5000 6000 5000 3900 500 320 600 45 5500×2910×4900
WC67Y/K-600/6000 6000 6000 4900 500 320 600 45 6500×2910×5100
WC67Y/K-600/7000 6000 7000 5900 500 320 600 45 7500×2910×5200
WC67Y/K-800/6000 8000 6000 4900 600 400 600 55 6500×2750 ×5300
WC67Y/K-800/8000 8000 8000 6900 600 400 600 55 8500×2750×5900
WC67Y/K-1000/6000 10000 6000 4900 600 400 600 2×37 6500×2800×5600
WC67Y/K-1000/8000 10000 8000 6900 600 400 600 2×37 8500×2800×6100
WC67Y/K-1000/10000 10000 10000 8000 600 400 600 2×37 10500×2800×5850
WC67Y/K-1200/6000 12000 6000 4900 600 400 800 2×37 6500×3100×5850
WC67Y/K-1200/8000 12000 8000 6900 600 400 800 2×37 8500×3100×7150

HIWIN Ball screws &Polished rod with 0.02mm accuracy
Plate Support Arms
Schneider Electrics
Germany Bosch-Rexroth Hydraulic
Germany Siemens Main Motor
Hydraulic & Electrical overload protection
Protection facility -laser protection
Germany EMB pipe fittings
USA Sunny Oil pump
Side guardrail, standard
Rear guardrail, optional
Compensation device
Quick clamp
Nanjing servo motor

TP10S CNC Controller
1. 7 inch TFT 256K color touch screen
2. The standard Y X axis servo motor
3. Support angle programming, system automatically calculate depth
4. Slider (Y axis) position control, position control of rear stopper (X axis)
5. 220 programs, each program 24 steps
6. Mataching support X2, R1, R2, Z1, Z2

TP10S Servo Control Backgauge Hydraulic Press Bending Machine 30T1600MM

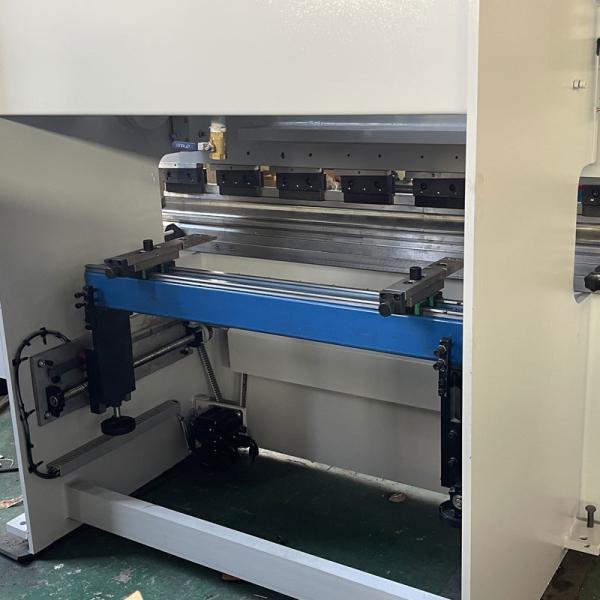

Ball Screw & Guide Linear Ball
Adopt the HIWIN brand from Taiwan Ball Screw and guide linear , promise the high precision and speed when workingAdopt the HIWIN brand from Taiwan Ball Screw and guide linear , promise the high precision and speed when working

TP10S Servo Control Backgauge Hydraulic Press Bending Machine 30T1600MM
