High Efficiency Press Punching Machine For Steel Metal Shape Forming J23-200

Brand Name : AOXUANZG

Model Number : J23

Certification : CE

Place of Origin : China

MOQ : 1 SET

Price : US $2,470-2,805 / Set

Payment Terms : D/A, D/P, Western Union, MoneyGram, L/C, T/T

Supply Ability : 500 sets/ year

Delivery Time : 30 days after payment

Packaging Details : Standard wooden case

Slider Drive Mechanism : Screw Press

Automatic Grade : Automatic

Precision : High Precision

Condition : New

Number of Strokers : 28times/Min

Mold Height : 420mm

Size of Worktable : 1390X820mm

Table Thickness : 150mm

Power : 18.5W

Dimensions : 2015*2475*3780mm

Weight : 4000KG

Origin : Maanshan

Contact Now

High Efficiency J23-200 Sheet Metal Press Punching Machine for Steel Metal Shape Forming

Main Features:
1. J23 series Open Eccentric Presses is a general-purpose presses, suitable for forming, blanking, punching, bending and other cold stamping process.
2. C-frame Casting fuselage,maximum rigidity and minimum deflection for accurate parts and long tool life. body can be tilted, , high rigidity and less deformation Compact. Thick plates and large columns provide you with the stable platform you need for your demanding application.
3. The Machine use Rigid rotated bond clutch rigid and well supported. The clutch gives continuous strokes for mass production.
4. Crank shaft is made of special alloy steel machined to close accuracy and fitted in bronze bushes for smooth working, longer life & accuracy.
5. Properly sized flywheel, is made of high grade cast iron, for storing and releasing adequate energy for the pressing operations, and properly balanced for smooth running.
6. Gear are of steel cast or fabricated. Gear teeth are generated by precision hobbing machine.
7. Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA.
8. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.

High Efficiency Press Punching Machine For Steel Metal Shape Forming J23-200

High Efficiency Press Punching Machine For Steel Metal Shape Forming J23-200

Transmission control and brake systems:

1. Use the combine of dry friction clutch and brake pneumatic, rigid interlocking, reliable piece of friction material semimetallic friction
material SMFM88, less pollution, long life. With the transfer torque, rotational inertia is small, smooth transmission, flexible operation,
convenient of installation and maintenance
2. Die height adjustment of slider with manual mode, the scale display. Extended by four
triangular rail, easy adjustment.
3. Use double safety valve to ensure the accurate implementation of the clutch instruction.
4. Electrical control is installed PLC, 8 group cam controller, reliable action.
5. Electrical control adopts Omron PLC for centralized control, improved machine reliability
6. Proximity switch with 8 groups consisting of cam controller, reliable synchronization detection and monitoring.
7. Machine is with both hands button and foot switch to achieve continuous, single and inching practices.
8. Can move the RAM up slowly, which allows the operator to control Mold adjustment conveniently.

RAM adjustment and Structure:

1. Adjustable stroke machine, slide stroke to achieve a certain level within the range of adjustable, body steel plate welded structure,
the whole body is tempered, use the secondary transmission, the transmission part of the crankshaft horizontal Placement, flywheel
and gear are the external open style, easy maintenance.

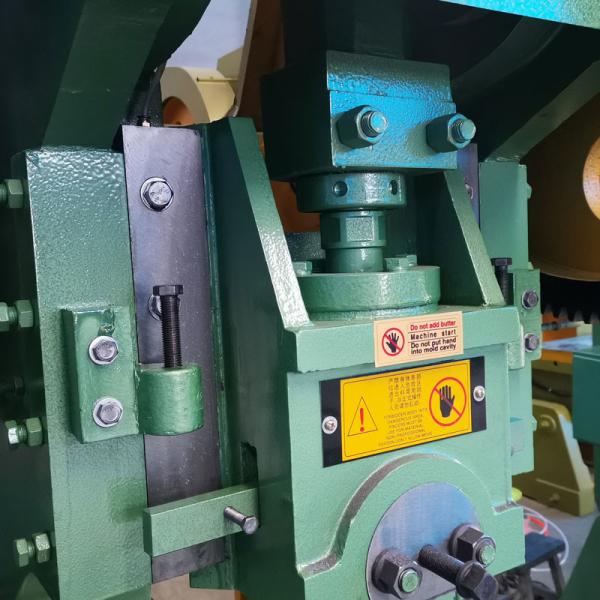

2. Slider is a cast box structure and rigid. Collapse of the sliderstyle installation of pressure overload protection device, simple structure, if the slider overload,the fuse collapse is damaged, then protect the machine tool and die from damage.

High Efficiency Press Punching Machine For Steel Metal Shape Forming J23-200High Efficiency Press Punching Machine For Steel Metal Shape Forming J23-200High Efficiency Press Punching Machine For Steel Metal Shape Forming J23-200High Efficiency Press Punching Machine For Steel Metal Shape Forming J23-200

Technical Parameters:

Model J21
Nominal force 120KN
Nominal travel 2mm
Slider stroke 50mm
Number of strokes 140 t/mins
Mould height 130mm
Mould height ajustment 40mm
Motor power 1.5KW
Workbbench thickness 35mm
Workbench plae hole size 90

Packing details:

Each Hydraulic shearing machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers
and ship them abroad.
Delivery Detail:
Shipped in 30 days after payment

High Efficiency Press Punching Machine For Steel Metal Shape Forming J23-200

Our Service
Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging * Inquiry and consulting support.
* Sample testing support.
In-sales. * We will provide you with the latest progress in the product assembly, packaging and transportation.
After-sales.
* We will provide free accessories for the damage to non - human parts. * Training how to install the machine, training how
to use the machine with video and so on * And our technical staff can go abroad to provide technical guidance.
